Pure Sine Wave Inverter 1200W off Grid Inverter for RV System Solar System

Products

Pure Sine Wave Inverter 1200W off Grid Inverter for RV System Solar System

Pure Sine Wave Inverter 1200W off Grid Inverter for RV System Solar System

Overview Package size per unit product 2.90cm * 0.90cm * 1.70cm Gross weight per unit product 2.800kg Pure Sine Wave Inv

Send your inquiry

DESCRIPTION

Basic Info
Model NO. 1200W Inverter
Phase Single
Output Power >1000W
Certification CE, ISO9001
Brand Sunstone Power
Type DC/DC Inverters
Power Source Solar Power
Circuit Topologies Full-Bridge Type
Nature of Wave String Sine Wave Inverter
Color High Quality Grey Color
Transport Package Carton with Palllet
Specification As sample
Trademark Sunstone Power
Origin Shenzhen, China
HS Code 8504403090
Packaging & Delivery
Package size per unit product 2.90cm * 0.90cm * 1.70cm Gross weight per unit product 2.800kg
Product Description

Pure Sine Wave Inverter 1200W off Grid Inverter for RV System Solar System

Product Description

The SIH series is a vehicle-mounted inverter with pure sine wave outputs, which can be connected to a LiFePO4 battery or lead acid battery.The outputs include dual AC sockets, dual USB ports, and a type -C Quick Charging port.The inverter has built-in complete protection circuits, as well as an LCD screen that can display battery voltage and power, output voltage,frequency, power, etc. In addition, it also has input reverse polarity protection.

Product Specification

Dimension (D*W*H) 90*290*170mm
Weight2.55kg
Input voltageDC11.50V-DC15.0V
AC output voltageAC230V +/-10%
Frequency 50HZ +/-1Hz
Waveform pure sine wave
Soft startyes
Harmonic distortionTHD 3%
Work efficiency93% MAX
AC output power1200W +/-10%
USB outputDC5V-3A MAX
TYPE-C output5V3A/9V2A/12V1.5A support PD3.0 protocol, support QC3.0 protocol

Features

1)Input Reverse Connection Protection2)Input Under-voltage Protection3)Input Overvoltage Protection4)Output Overload Protection5)Output Short Circuit Protection6)Over Temperature Protection

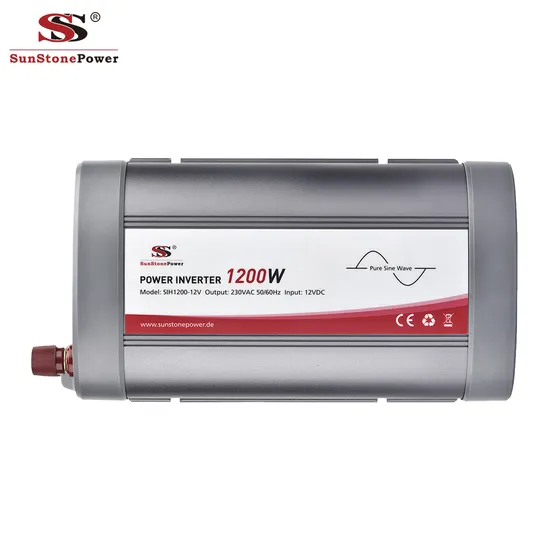

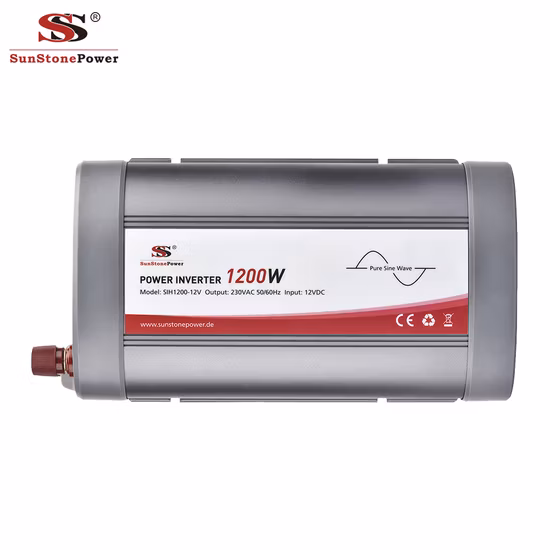

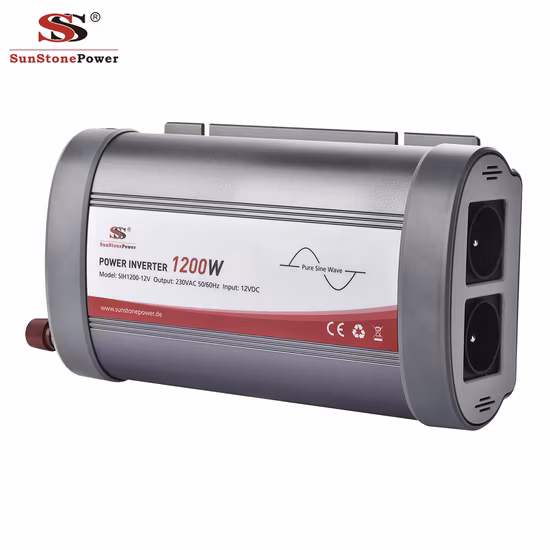

Detailed Photos

Pure Sine Wave Inverter 1200W off Grid Inverter for RV System Solar System

Pure Sine Wave Inverter 1200W off Grid Inverter for RV System Solar System

Pure Sine Wave Inverter 1200W off Grid Inverter for RV System Solar System

Pure Sine Wave Inverter 1200W off Grid Inverter for RV System Solar System

Pure Sine Wave Inverter 1200W off Grid Inverter for RV System Solar System

Company Profile

Sunstone Power Co. was established in 2003 in manufacturing, market, and brand-name-building lead-acid batteries/battery plates.Our factories (both plates factory & assembling factory) locate in Kunming City, Yunnan P.R. China. Since Yunnan P.R. is one of the main lead supplyareas, we have good advantages in quality control, delivery control, and cost control. So far we are the only factory that gets pollution controlpermission from the government in Yunnan P.R.Besides this, we set up our German company in Frankfurt in 2017 and an Indonesian company in Jakarta at the end of 2018.We have our warehouse in both of these two countries. It gives fast delivery and stock support to European and Southeast Asian markets.

Partners

Certifications

Sunstone Power has been ISO9001, ISO14001 approved and soon on,m any of our products obtained CE, IEC ,VDS,RISTI(BY PT. TELKOM INDONESIA) certificates.
FAQ

Warning

· Do not allow children to use.

· Do not get the device wet.

· Do not touch the power plug with wet hands.

· Do not connect the output in parallel with the mains.

· Do not disassemble or modify the product without authorization.

· Do not place sticks or other metal objects in the air vents or other openings.

· Keep it well-ventilated. Do not place it in a place where flammable gas will be generated.· Do not allow volatile or combustible substances to enter the product.

· Do not damage the output socket or cord.

· Do not operate the product in a high temperature and high humidity environment.

· Do not use the product in a common ground power system.

· Do not use it in medical devices without testing.

Operation

· When connecting the inverter and battery, proper cables should be used, and the operation should be standardized.

· Switching on or off of the inverter continuously and frequently may cause damage.

· The inverter is easy to drive resistive loads and switching power loads, such as induction cookers, rice cookers, TVs, and other devices. Within the nominal current or power range of the inverter, the nominal current or power can operate at full load because of its linear loads. Non-linear loads, such as electric drills, compressors, water pumps, etc., require a greater level of power than resistive loads to function properly. They require an operating current of about 2 to 6 times to start. If the inverter works with a full load, overload protection will start and it cannot be used normally.

Therefore, please confirm what type of load the device is and how much starting current or power it needs before choosing an inverter for your electronic device.

Using Environment

Place the inverter on a flat surface where the power cord can be easily secured. The location of the inverter should meet the following standards:

· Keep the ambient temperature in the range of 0~50°C.

· Keep dry. Keep away from moisture or water.

· Keep ventilated. DO NOT place objects around or on the inverter.

· Keep shady. DO NOT expose it to direct sunlight and DO NOT place the inverter near any heat-generating equipment.

· Keep away from all flammable materials.

Using Steps

1. Use the red DC cable to connect the positive pole of the battery to the red terminal of the inverter.

2. Use the black DC cable to connect the negative pole of the battery to the black terminal of the inverter.

3. After connecting the power cord, the LCD will display for 1 second, then the screen will be turned off and enter Sleep mode.

4. Short press the button to turn on the inverter.

5. Press the button three times to enter the Undervoltage Protection point setting mode.

*The Undervoltage point is the default value of 11.75V.

6. In the setting mode, short press the button, and the Undervoltage Protection point can be selected. The selectable value is 11.75V = LFP (LiFePO4 battery) or 11.0V = LAD (Lead acid battery). After selection, press the button for 1 second. After successful setting, the normal

content will be displayed.
If the button is not pressed within 10 seconds, the setting mode is exited.
